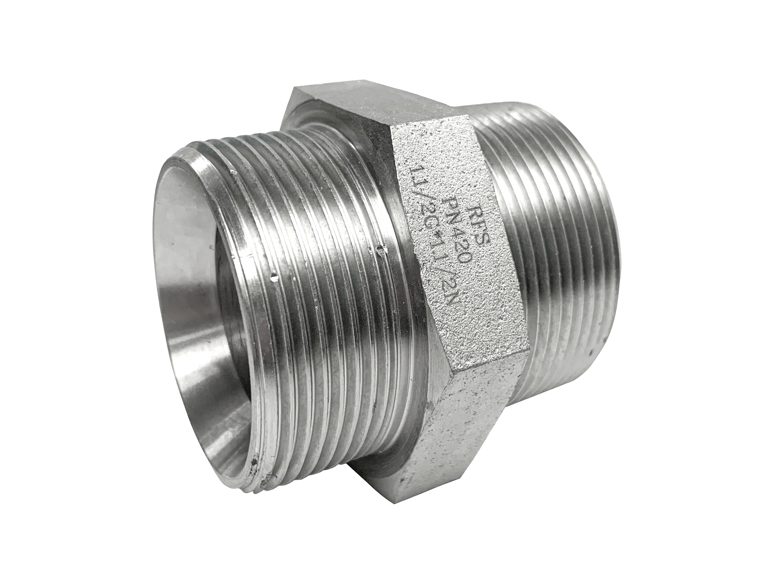

ADAPTERS FITTINGS

Brand:
Stauff
​RFS Hydraulics

Description:
RFS Adapters are used to connect system equipment when no standard solution is possible (for example different threads or size reductions etc.). RFS Adapters mainly consist of steel and stainless steel material and provide instant solutions to ensure no project delays.​
Size Range
  • 1/8" to 2"
Design Standard
  • Various Design Standards
Connection
  • BSPP
  • NPT
  • ​BSPP x NPT
Material
  • Steel
  • ​SS316
Working Pressure
  • Up to 420 BAR
Origin
  • China
Catalogue:
Adapter Fittings
Vertical Divider
Literature:
Adapter Fittings

Having difficulties looking for Adapters Fittings? We can help you because we have all sizes.
CONTACT US NOW!

Product Information of Adapter Fittings

1. Specifications:​

RFS Adapter is a connector that connects both ends of a connection without requiring direct compatibility. They ​are used to connect system equipment when no standard solution is possible (for example different threads or size reductions etc.). RFS Adapters mainly consist of steel and stainless steel material and provide instant solutions to ensure no project delays. It is mostly utilized for pipes having a wide size variation on both ends, such as big jumped size pipes. ​These fittings are used on oil hydraulic systems in many fields (fuel delivery, fuel power application, shipbuilding, mobile hydraulic equipment, etc).

For instance, It may be tough to connect a pipe with a male end of 1/2” and a female end of 1”. However, a 1/2” and 1” adapter can be designed and utilized to build the piping system and allow for the smooth flow.

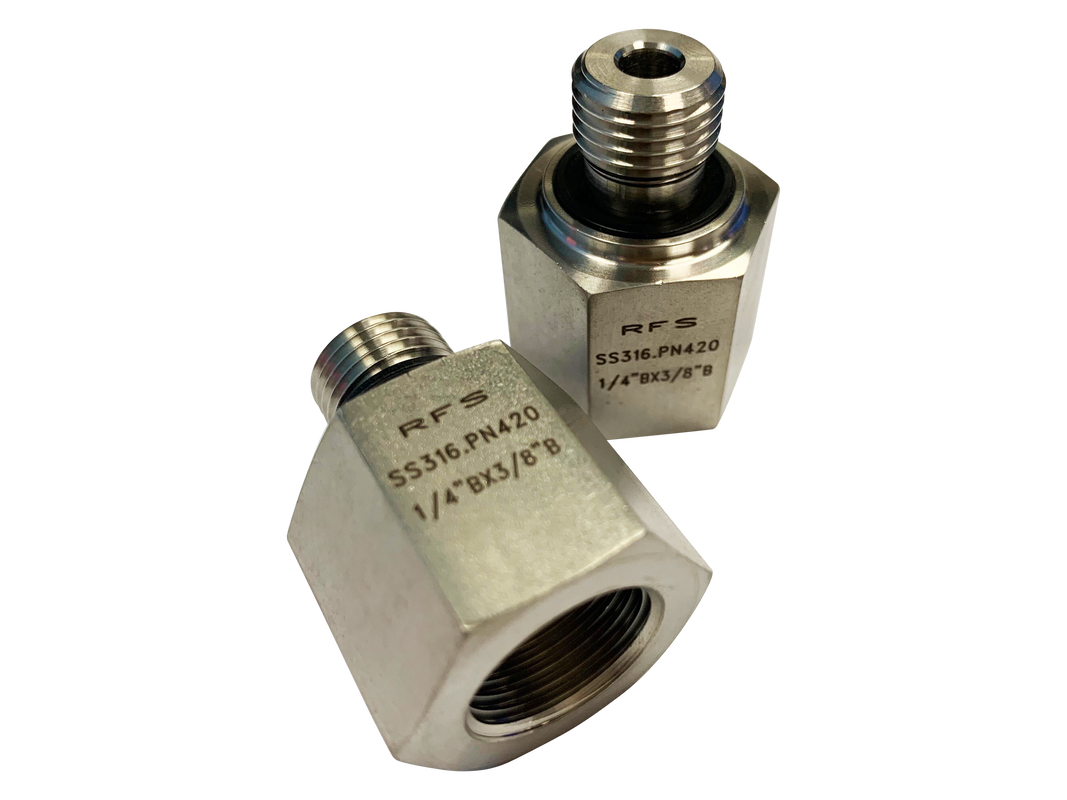

Male x Female NPT Adapters
Male x Female NPT Adapters

2. Material:​

Adapter fittings material include carbon steel and stainless steel SS316.
The chemical composition of carbon steel (A105) is shown in the table below: ​
Elements
Composition (%)
Sulfur (S)
≤ 0.40
Carbon (C)
≤ 0.35
Phosphorus (P)
≤ 0.35
Silicon (Si)
0.10 – 0.35
Vanadium (V)
≤ 0.08
Copper (Cu)
≤ 0.40
Molybdenum (Mo)
≤ 0.12
Nickel (Ni)
≤ 0.40
Manganese (Mn)
0.60 – 1.05
Chromium (Cr)
≤ 0.30
The chemical composition of stainless steel (SS316) is shown in the table below:
Elements
Composition (%)
Sulfur (S)
0.03
Carbon (C)
0.08
Phosphorus (P)
0.045
Silicon (Si)
1.00
Vanadium (V)
≤ 0.08
Copper (Cu)
≤ 0.40
Molybdenum (Mo)
2.0/3.0
Nickel (Ni)
10/14
Manganese (Mn)
2.00
Chromium (Cr)
23/26
​There are two categories of adapter fittings which are straight types and non-straight types. A straight adapter is made from cold down bars that meet ASTM requirements. In contrast, close grain forging is a process that is used to make non-straight fittings such as a 3-way tee or a 90-degree elbow. Furthermore, each material has a temperature range that it can tolerate. A stainless steel (SS316) material, for example, can resist a maximum temperature of 537⁰C (1000⁰F).
Material
Bar Stock
Forgings
​Max Temperature Ratings °C (°F)
Stainless Steel SS316
ASTM A479 Type 316 ASTM A276 Type 316
ASTM A182 F316
537 (1000)
​Carbon Steel
ASTM A108 JIS G4051 S20C-S45C
ASTM A105 JIS G3201 SF440A
204 (400)
​Brass
ASTM B16 C36000 JIS H3250 C3604
​ASTM B283 C37700 JIS H3250 C3771
​190 (375)

3. Sizes:​

Adapter fittings are available between 1/8" to 1 2". Sleeve has two different reading measurements, metric size (mm) and inch outer diameter ("OD). Sleeve size is available from 3mm to 50mm and 1/8" to 2". Fitting sizes are designated by the corresponding outside diameter of the tubing for the various types of tube ends.

4. Working Pressure:​

The standard working pressure of the fittings is up to 420 bar, with different pressures for different sizes and connections. The minimum burst pressure is four times the working pressure.

Pressure rating of fittings may vary when connected to different equipment. For example, if a fitting with a low working pressure is connected to a pipe, it will result in an overall lower system working pressure. In all cases, always consider the lowest pressure as the maximum working pressure of the system.​

​Pressure ratings for each adapter table are at an ambient temperature of 37⁰C (100⁰F). The pressure ratings of adapters are as per the requirements of ASME B31.3 process piping guide.

Adapters Fittings
Adapters Fittings
5. Differences Between A Coupling and An Adapter Fitting:​

A socket, also known as a coupling, is a straight connector that allows equal flow rate in only one direction. If the pipe diameters aren't the same, a reduction coupling is used to lower flow by connecting two pipes of different sizes. It generally has a female end and a male connection of the pipe. ​
​
On the other hand, adapters vary in size and connectivity. It may be tailored to the size of the system and the type of connection required. Male size of standard hex bush fitting threaded end connection is larger than female size. The female internal thread of the adapter might be larger than the male external thread, or both male and female threads can be the same size.

6. Connections Two Pipes with the Same Size:​

An adapter is a pipe fitting that connects two pipes. Adapter fittings are offered with threaded connections such as BSPP and NPT. The connection threads include hex nipple, plug, and male through a female adapter. The maximum pressure rating for adapter fitting is 420 Bar. The pressure ratings for the fittings are measured at a temperature of 100⁰F (37⁰C). Moreover, the pressure ratings are determined by some variables such as the temperature de-rating factor, the material of the O-ring seal, and the flow rate.

The gasket and O-ring material temperature is shown in the table below: ​
Components
Material
Temperature Min ⁰F (⁰C)
Temperature Max ⁰F (⁰C)
Bonded Seal Gasket
NBR
-25 (-13)
230 (110)
SAE O-rings
FKM
-20 (-28)
400 (204)
​Copper Gasket
COPPER
-325 (-198)
​400 (204)
Bonded Seal Gasket
FKM
-5 (-15)
400 (204)

7. Adapter Temperature De-rating Factor:​
​
Adapter Fittings temperature ratings vary in accordance to the body material as per below:
°C
-60
38
93
204
315
426
537
SS316
1.00
1.00
1.00
​0.96
​0.85
0.79
0.76
Carbon Steel
-
1.00
0.94
0.86
-
-
-
​Brass
-
1.00
0.78
0.13
-
-
-
​Under normal system conditions, the maximum operating pressure for a stainless steel adapter fitting A is 420 Bars. When the temperature of the fitting working environment is raised to 400⁰C, the pressure lowers to 331 bars. This is determined by multiplying the working pressure (420 bar) with the de-rating factor (0.79).

Hence, the temperature of 400°C for stainless steel is incompatible with carbon steel and brass adapter fittings. The maximum temperature for these materials is 204⁰C. The temperature of 400⁰C for stainless steel is not suitable for adapter fittings of carbon steel and brass. It is only applicable up to a maximum temperature of 204⁰C.

Product Catalogue in pdf:
Adapter Fittings
​Adapter Fittings
Product Literature in pdf:
Adapter Fittings

​​To go back to High Pressure Fittings page
High Pressure Fittings

FAQ Of Adapter Fittings

What is the size range of pipe adapter fittings?
​The size range of pipe adapter fittings is from 1/8 inches to 2 inches​.
​What is the working pressure for pipe adapter fittings?
The working pressure of pipe adapter fittings is up to 420 bar.
What is the functions of pipe adapter fittings?
Pipe adapter fittings are used to extend or terminate a piping running system. It prevents leakage between connections in system process, power instrumentation, and general industrial uses.
​What are the benefit of using adapter fittings?
​Benefits of using adapter fittings:
- The availability of many various choices of configurations and connections.
- Threads constructed to ensure system's reliability and avoid leakage.
- The male thread connection with plastic cap protection.
- Applicable in high pressure system application.
What is the distinction between a coupling and an adapter?
A coupling usually comes in both female end and connects with pipe in male connection while an adapter comes in
different size and connection. It can be tailored to the size of the system and the type of connection needed.

​
What is the brand of pipe adapter fitings?
The brand of pipe adapter fittings is RFS Hydraulics.
Clients who viewed this product also:
Stainless Steel Tubes
Stainless Steel Tubes
Quick Connect Fittings
Quick Connect Couplings
High Pressure Ball Valves
High Pressure Ball Valves
JIC Fittings
JIC Fittings
Company
About Us
​
ISO Certification
​
Testimonials
​
News
​Contact Us
​Quick Links
Brands
Products
MyRewards
​Catalogues
​
Literature
​
FAQ
Legal Information
Terms & Conditions
​
Privacy Policy
Subscribe to Chuan Kok Newsletter
 © 2022 Chuan Kok Hardware & Machinery Pte Ltd. All rights reserved.
  • About
    • Core Values
    • ISO Certification
    • Testimonials
  • Brands
    • Stauff
    • RFS Hydraulics
    • MHA-Zentgraf
    • Eaton Walterscheid
    • AF Hydro
    • Oleo-Tecnica
    • KPL Industry
    • Bothwell
    • Inteva
  • Products
    • Pipes and Tubes >
      • Stainless Steel Tubes
      • Stainless Steel Pipes
      • Hydraulic Steel Tubes
      • Copper Tubes
      • Copper Coils
      • Walform Tubes
    • Clamps >
      • Stauff Clamps
      • Tube Clamps
      • Stauff ACT Clamps
      • Rubber Insert Clamps
    • Flanges >
      • SAE Flange
      • Square Flanges
    • High Pressure Valves >
      • High Pressure Ball Valves
      • High Pressure Check Valves
      • Needle Valves
      • SAE Flange Ball Valves
      • SAE Flange Check Valves
      • ISO6164 Ball Valve
    • High Pressure Fittings >
      • Hydraulic Compression Fittings
      • Forged Pipe Fittings
      • JIC Fittings
      • Twin / Double Ferrule Fittings
      • Quick Connect Couplings
      • Adapter Fittings
    • Low Pressure Valves >
      • Low Pressure Ball Valves >
        • 1 PC Ball Valve
        • 2 PC Ball Valve
        • 3 PC Ball Valve
        • 3 Way L-Port Ball Valve
        • 3 Way T-Port Ball Valve
        • Brass Ball Valve
        • Brass Mini Ball Valve
        • Stainless Steel Mini Ball Valve
      • Flange End Ball Valves >
        • PN10/16 SS316 Flange End Ball Valve
        • ANSI 150# SS316 Flange End Ball Valve
        • ANSI 300# SS316 Flange End Ball Valve
        • JIS 10K SS316 Flange End Ball Valve
        • ANSI 150# Cast Steel Flange End Ball Valve
        • ANSI 300# Cast Steel Flange End Ball Valve
      • Swing Check Valves >
        • ANSI 150# SS316 Flange End Swing Check Valve
        • JIS 10K SS316 Flange End Swing Check Valve
        • ANSI 150# Cast Steel Flange End Swing Check Valve
        • Threaded End SS316 Swing Check Valve
        • Threaded End Brass Swing Check Valve
      • Single Plate Check Valve
      • Dual Plate Check Valve
      • Spring Check Valve
      • Y-strainers >
        • ANSI 150# SS316 Flange End Y-Strainers
        • JIS 10K SS316 Flange End Y-Strainers
        • Threaded End SS316 Y-Strainers
        • ANSI 150# Cast Steel Flange End Y-Strainers
        • JIS 10K Cast Steel Flange End Y-Strainers
      • Gate Valves >
        • ANSI 150# SS316 Flange End Gate Valve
        • JIS 10K SS316 Flange End Gate Valve
        • Threaded End SS316 Gate Valve 200PSI
        • Threaded End SS316 Gate Valve 800PSI
        • ANSI 150# Cast Iron Flange End Gate Valve
        • JIS 10K Cast Iron Flange End Gate Valve
        • ANSI 150# Cast Steel Flange End Gate Valve
        • ANSI 150# Forged Steel Flange End Gate Valve
        • Threaded End Forged Steel Gate Valve
        • Welded End Forged Steel Gate Valve
      • Globe Valves >
        • ANSI 150# SS316 Flange End Globe Valve
        • JIS 10K SS316 Flange End Globe Valve
        • Threaded End SS316 Globe Valve 200PSI
        • Threaded End SS316 Globe Valve 800PSI
        • ANSI 150# Cast Iron Flange End Globe Valve
        • JIS 10K Cast Iron Flange End Globe Valve
        • ANSI 150# Cast Steel Flange End Globe Valve
        • ANSI 150# Forged Steel Flange End Globe Valve
        • Threaded End Forged Steel Globe Valve
        • Welded End Forged Steel Globe Valve
      • Butterfly Valves >
        • ANSI 150# Cast Iron Wafer Type Butterfly Valve
        • ANSI 150# Cast Iron Lug Type Butterfly Valve
    • Low Pressure Fittings >
      • Class 150# Fittings
      • Copper Fittings
      • Camlock Fittings
    • Accessories >
      • Stauff Pressure Gauges
      • Stauff Test Couplings
      • Stauff Tube Cleaning Systems
      • Stauff Level Gauges
      • Stauff Filler Breathers
      • Eaton Walterscheid Walform Machine
      • Eaton Walterscheid Anti Bloc Fett/Grease
      • Eaton Walterscheid Walform Seal
      • GS Hydro Retain Ring
      • GS Hydro Bonded Seals
      • O-Rings
      • Dowty Seals
  • MyRewards
    • BENEFITS
    • MyFAQ
    • Sign-up MyRewards
  • Catalogues
    • Pipes and Tubes
    • Clamps
    • Flanges
    • High Pressure Valves
    • High Pressure Fittings
    • Low Pressure Valves
    • Low Pressure Fittings
    • Accessories
  • News
  • Contact
